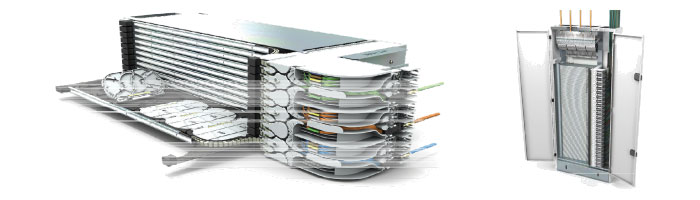

RA009-05 Optical Consolidation Rack
Features and Benefits
• Eliminates the need for single fibre jumper cables, removing the issues of
over-length storage and congestion.
• Supplied in ‘flat pack’ format to minimise transport costs and ease handling.
• The OCR accommodates up to 8 OCR sub-racks (see next page).
• Each OCR sub-rack has a capacity of 144 fibres, managed on a single circuit
basis, providing a total capacity within the rack of 1152 fibres.
• The rack is pre-tubed from the cable breakout organiser to the sub-rack
positions. A sub-rack is simply located in place, connected to the tube
connection panel and fibres can be routed directly to the sub-rack.
• Cable entry to the rack is from overhead. All cables can be installed on day
one without the need for any sub-racks installed, as cable fibres are broken
out and stored in the Cable Breakout Organiser for later use.
• Pre-connectorised cables exit the rack from the top right hand side. The
cables are routed and stored in segregated Cable Guides.
• Reels are used to store spare fibres of pre-connectorised cables for later use.
• Rack can be secured to the floor through four fixing holes (four levelling bolts
are also provided). Two M12 fixing points are provided in the top face for
securing to suitable suite ironwork.
• Supplied with an integral high level storage shelf.
Technical Data
• Spliced fibre capacity: 576 fibres on a single fibre basis
1152 fibres on a single circuit basis
• Cable capacity: 36
• Required space envelope (mm): (w) 900 x (d) 300 x (h) 2200
• Operating temperature: -20o
C to + 50o
C (5 to 95% RH)
• Materials:-
• Internal Metalwork: Mild Steel
• External Metalwork: Mild Steel
• Plastics: High Impact Polystyrene (Fire Retardant)
• Finish:-
• Internal Metalwork: Zinc passivate (Clear)
• External Metalwork: Painted Light Grey (RAL 7035)
• Plastic: Light Grey (RAL 7035)
• Testing:-
• Optical: Tested at 1310nm, 1550nm and 1625nm
• Dry heat: BS EN 60068-2-2 Test Bb
• Damp heat: IEC 68-2-3
• Change of temperature IEC 68-2-14
• Vibration: IEC 68-2-6
• Shock: IEC 68-2-27
