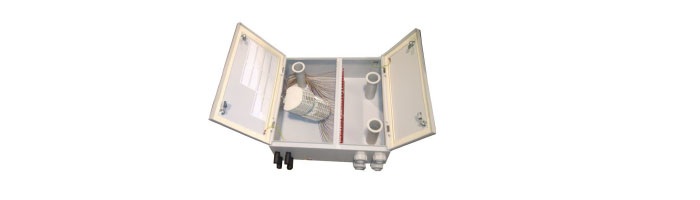

WM039-09 Two Door Termination Box – Up To 144F
Features and Benefits
• Provides the termination of an optical cable of up to 144 fibres onto an
adapter panel. SC, FC, LC, E2000 and ST connectors can be
accommodated.
• Supplied with single element splice trays and pigtails already installed.
• Suitable for both internal and external use. The box is rated up to IP66.
• The box has four cable entry ports for input cables of up to 24mm in
diameter. Input cables are secured and sealed into the box using cable
glands, which are secured using supplied heat shrink sleeves.
• Output patchcords or cables exit the box through a 40mm plastic cable
gland. The gland can be used to secure a 40mm diameter corrugated
tube. The corrugated tube is sold separately in lengths required by the
customer. Please refer to additional items.
• Each half of the box has its own lockable cover to prevent unauthorised
access. Both locks are supplied to use the same key.
• The standard colour for the box is RAL7035.
• The material of the box is stainless steel painted (The box is made from
304 stainless steel with a powder coated finish).
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
