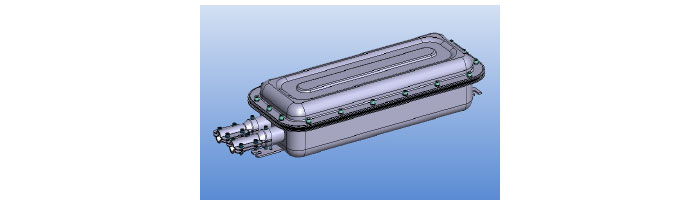

OP052-02 VXOK 1030SO-G- Joint Closure
Features and Benefits
• Metallic closure units for OPGW with Aluminium tube construction and/or
optical cables with central tube construction.
• Acid proof stainless steel housing for harsh and corrosive environments
without any additional protection.
• High crush and impact resistance.
• Maximum capacity up to 192 splices.
• Gland type cable entry port seals provide excellent water tightness and high
cable pull out strength.
• Non craft sensitive and reliable.
• Water tight seal to IP68.
Technical Data
• Dimensions (excl. inlet tubes) 560x230x100 mm (L x W x H)
• Inner diameter cable entry ports Cable diameter max 21 mm; cable core diameter max 10,5 mm
• Number of entry ports 2
• Weight about 10 kg
• Material Closure: Acid proof stainless steel (AISI 316) 1.5 mm
Closure seal: Chloroprene rubber
• Splice tray capacity 4 trays XOKP 1024/48 with max capacity of 48 splices/tray
• Temperature variation IEC 60068-2-14; 2 cycles -30°C to +80°C: <0.1 dB@1550 nm
• Damp heat IEC 60068-2-14; + 60°C, RV 93%, 16 h: <0.1 dB@1550 nm
• Climatic withstand test IEC 60068-2-14; heat +85°C; RV 93%;16 h: <0.1 dB@1550 nm
IEC 60068-2-14; cold -30°C; 16 h: <0.1 dB@1550 nm
• Corrosion test A sulphur dioxide EN ISO 7384, ISO 3231; +40°C; RV saturated; SO2 0,067% by volume; 3x 120 h
• Corrosion test B salty mist IEC 60068-2-52; +35°C; 1000 h
• Temperature range:
• Transport and storage -40ºC to +50ºC
• Installation -10ºC to +50ºC
• Operation -45ºC to +80ºC
• Fibre bending radius (mm) minimum 30 mm
• Cable retention IEC 60794-1-E1: 1000 N
• Water immersion IP68 (No water ingress at 1 meter water pressure for 7 days)
• Impact resistance IEC 60794-1-E4: 30 Nm @ 20 ºC, radius 300 mm
• Crush resistance 1000 N @ 20 ºC on top surface of the box
• Torsion resistance IEC 60794-1-E7: 1000 mm length, ± 180°: <0.1 dB@1550 nm
• Drop Drop height 5 meters on concrete: <0.1 dB@1550 nm
• Application area Group 1&2 in accordance with EN 124, 30 cm below surface level
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
