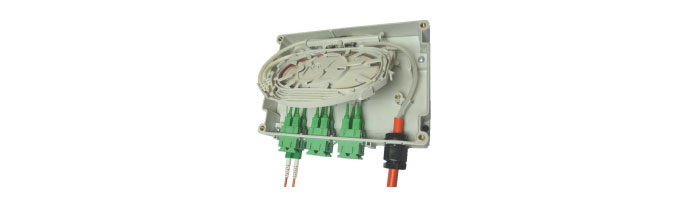

WM015-09 Internal Customer Splice Box
Features and Benefits
• Compact wall mounted unit used for residential, small or large business
premises.
• Removable cover for easy access.
• Tamperproof security screws available as an option (refer to optional
items).
• Unit manufactured from fire resistant UL94-V0 material.
• Single hinged splice tray enables access for working. Tray cover
provides circuit protection and contains fibre ID label.
• Pigtails exit from the bottom of the unit.
• Up to 12 SC type pigtails and adapters can be accommodated. Other
connector types are available on request. Please contact Prysmian for
further information.
• All fibre are positively bend managed to a 30mm minimum bend radius.
• Cables up to 13mm in diameter can be accommodated with a cable
gland. Diameters up to 18mm can be accommodated using a port
adapter supplied. Cables can also enter the unit through the wall.
• If external cable is terminated, cable interstices can be sealed against
the ingress of water/gas at the entry port using a quick set resin
(optional item – Sealing Resin).
• Compatible with Blown Fibre products. Note: for certain application
where external Blown Fibre tubing is terminated, a Gas Seal Connector
(not supplied) will be required to seal the tube (refer to optional items).
Technical Data
• Number of Splice Trays: 1
• Maximum Fibre Capacity: 12
• Maximum Cable Diameter (mm): 18
• Required space envelope (mm): (w) 220 x (h) 150 x (d) 50.
• Operating temperature: -20oC to + 50oC (5 to 95% RH)
• Material:-
• Internal Box FR ABS Light Grey RAL 7035
• Splice tray: FR ABS Light Grey RAL 7035
• Testing:-
• Optical: Tested 1310nm,1550nm and 1625nm
• Dry heat: BS EN 60068-2-2 Test Bb
• Damp heat: IEC 60068-2-3: 1969
• Change of temperature: IEC 60068-2-14: 1984
• Vibration: IEC 60068-2-6: 1995
• Shock: IEC 60068-2-27: 1987
Ürün teknik özellik ve detayları için PDF ikonuna tıklayarak detayları görüntüleyebilir, dosyayı indirebilir veya istediğiniz adrese mail yolu ile ulaştırabilirsiniz.
