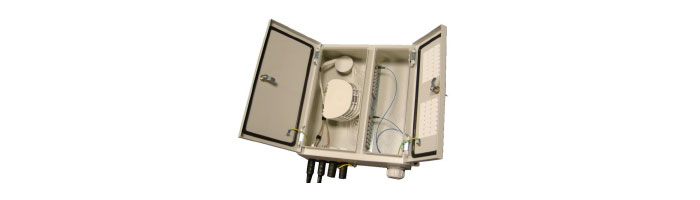

WM037-08 Two Door Termination Box – Up To 48
Features and Benefits
• Provides the termination of an optical cable of up to 48 fibres onto an
adapter panel. SC, FC, LC, and E2000 connectors can be
accommodated.
• Supplied with 5 single element splice trays. The box can be supplied
with splice trays for either heat shrink or crimp splice protectors.
• Suitable for both internal and external use. The box is rated to IP66.
• The box has four cable entry ports for input cables of up to 24mm in
diameter. Input cables are secured and sealed into the box using
heat shrinks.
• Output patchcords or cables exit the box through a 40mm plastic
cable gland. The gland can be used to secure a 40mm diameter
corrugated tube. The corrugated tube is sold separately in lengths
required by the customer. Please refer to additional items.
• Each half of the box has its own lockable cover to prevent
unauthorised access.
• Standard colour is RAL7035.
Technical Data
• Number of cable entries: 4 in, 1 x 40mm duct out
• Maximum cable diameter (mm): 24.0
• Maximum Capacity: 48 Fibres
• Maximum no. of customer feeds: 48
• Required space envelope (mm): (w) 400 x (h) 450 x (d) 150.
Note maximum width including fixing brackets is approximately 450mm
Maximum length including glands and fixing bracket = 540mm
• Operating temperature: -20oC to + 50oC (5 to 95% RH)
• Sealing: IP66
• Material: –
• Cover: Mild Steel
• Base: Mild Steel
• Splice Trays: PC ABS
• Finish:-
• Cover: Painted Grey RAL 7035
• Base: Painted Grey RAL 7035
• Splice trays: Grey RAL 7035
